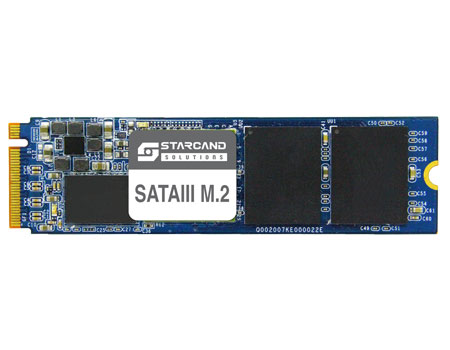

Agility Series SATAIII M.2 2280 SSD

STARCAND SOLUTION Agility Series SATA III M.2 2280 SSD

Features

  • Advanced wear leveling
  • TRIM function support
  • Static Data Refresh and Idle Clean F/W algorithm
  • Firmware live update

DESCRIPTION

STARCAND SOLUTIONS introduces the Agility Series, as A – Series, SATAIII M.2 2280 SSDs for outstanding performance especially in thin client embedded environments. These slim SSDs provide outstanding performance and high capacity, making them perfect choices for small systems installed in limited spaces. The SATA III interface allow quick and reliable integration into SATA-based systems. Along with unique STARCAND’s quality control ensuring endurance for long years use, the A - Series SATAIII M.2 SSDs are the perfect choices for slim clients, POS, BOX PC and compact size commercial PC systems.

STARCAND SOLUTIONS A – Series SATAIII M.2 2280 SSDs provide double-sided M.2 configuration, packed with high densities TLC NAND flash ICs. Wide temperature range of -40°C to 85°C could be another option for the PC system that need to be operated in severe temperature environments. These SSDs are capable to carry power loss protection (PLP) function to protect from power glitches and charge states, thus safeguarding data and storage device for higher levels of integrity and reliability.

Specification

Storage Size32GB – 512GB
Flash Type3D TLC
Dimensions80.0 x 22.0 x 2.2
Interface22 Pin SATAIII 6Gb/s
Seq Read Performance560/MBs
Seq. Write Performance440/MBs
Standard Operating Temperature0°C to 70°C
Industrial Operating Temperature-40°C to 85°C
Operating Humidity5%-95% RH non-condensing
Reliability MTBF>2,000,000 hours

PRODUCT SERIES

Technologies & Add-On Services

  • S.M.A.R.T.
  • Advanced Wear Leveling
  • Auto Refresh
  • TLC
  • MLC, pSLC
  • SLC
  • Wide Temperature
  • Power Loss Protection
  • Write-Protect or Read Only
  • Opal / AES
  • Quick Erase
  • Conformal Coating

Agility Series (A-Series)

Utility Series (U-Series)
